SPECIFICATIONS

Amplication: Class A

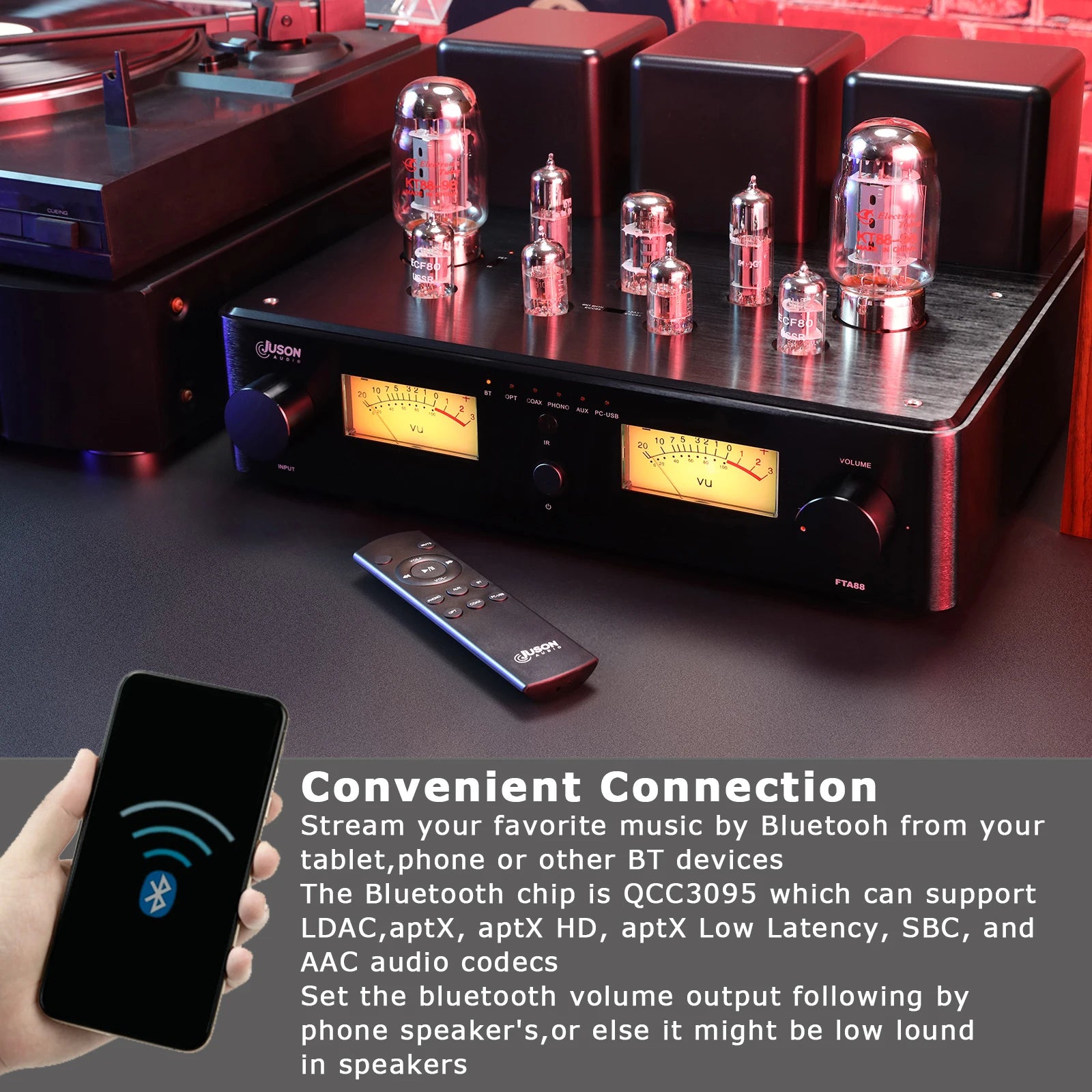

Blue tooth: version 5 supports LDAC,aptX, aptX HD, aptX Low Latency, SBC, and AAC audio codecs

Brand Name: JUSON AUDIO

Channel Separation: 85dB

Channels: 3 (2.1)

Digital Inputs: SPDIF LPCM(up to 48kHz 16Bit,SPDIF LPCM(up to 48kHz 16Bit

Dimensions: 380 x 370 x206 mm

Dynamic Range: >90 dB

Frequency Response: 20-20,000Hz(±2dB)

High-concerned chemical: None

Input Sensitivity: 200mV

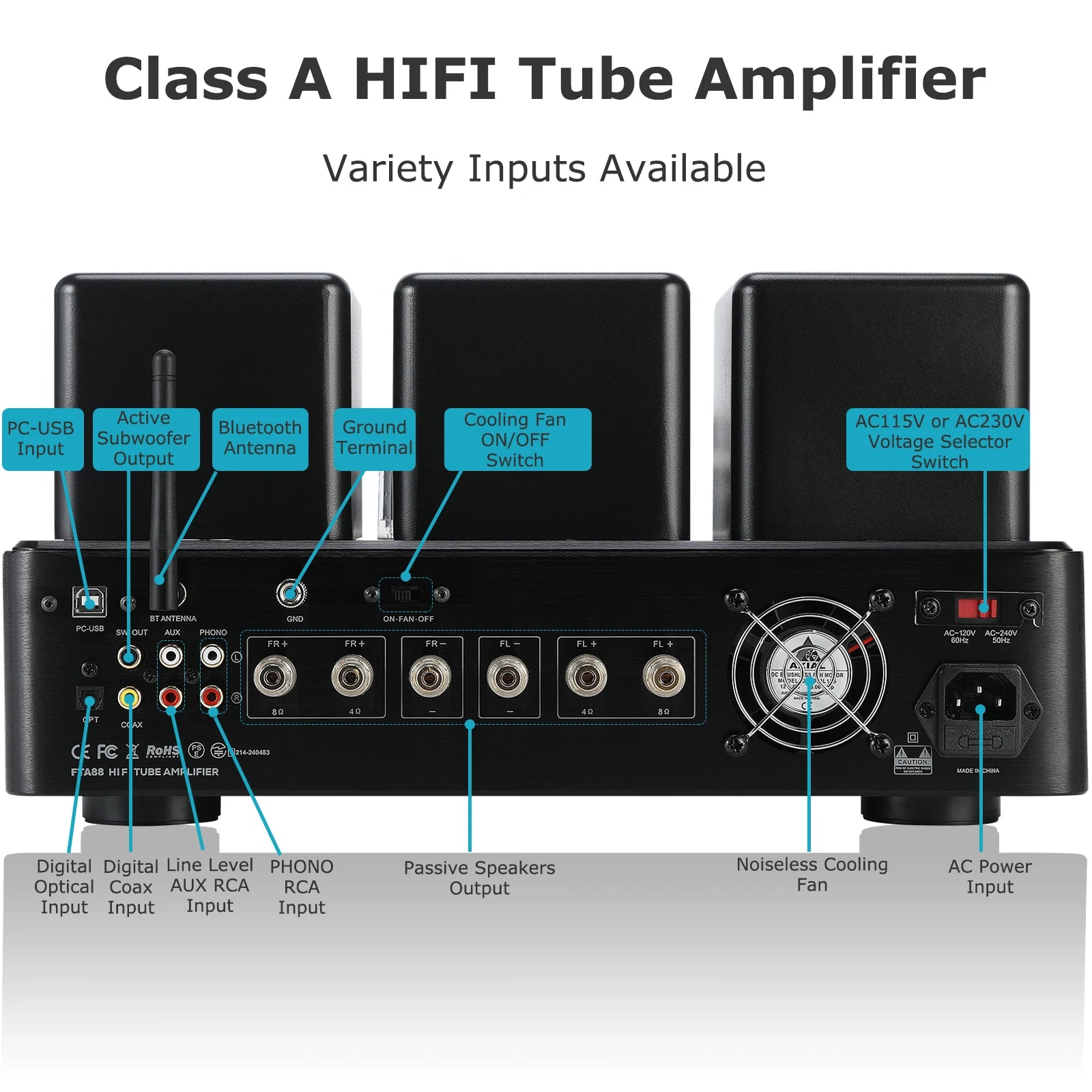

Inputs: Phono,CD,DVD,Optical,Coaxial,Bluetooth 5.0,USB

MOSFET: K1058 x2,J162 x 2

MOSFET Power Output(Peak): 90W RMS X2 @ 4 Ohm(THD≤5%)

Maximum Power Per Channel: 90 W

Minimum Speaker Impedance: Minimum Speaker Impedance,4 Ohm

Model Number: FTA88-N

Model number: KT88

Output: Passive Speakers,Active Subwoofer

PC-USB: Up to 48 kHz 16Bit

Package: Yes

Power: 230V,50Hz/EC

Power-amp Stabilivolt Tubes: WY-2 x 2,WY-3P x 1

Power-amp Tubes: KT88 x 2

Preamp Stabilivolt Tubes: ECF80 x 2

Preamplifier Tube: 6H2N x 2

Signal to Noise Ratio: >90 dB

THD+N: <1.5% @ Maximum Rated Output

Transformer Power Output: 10W RMS x 2

USB: Up to 48 kHz 16Bit

Have your attentions:

Shenzhen Zhouming Electronics Co., Limited (HIFI PARTS) is authorized to be the dealer of Shenzhen Juson Technology Co.,Ltd.To be authorized and approved an agent for distribution and after-sales service under Juson Audio all products.

Important tips For FTA88-N:

1.iF We have SOME stocks in Germany and USA warehouse .It could be shipped from our oversea warehouses directly if ship to European,USA address without any delay.

2.When out of stocks in USA and EU warehouse,we will ship from China ,even ship from China, we will bear the tax AS WELL, the customers do not need to pay tax or duty any more,we arrange door to door delivery.

WARM TIPS:

The listed price is not included local VAT(except for some countries adding by aliexpress).

If you did not pay VAT online,it will be required when the package arrived at local customs.

Different countries has different tariff threshold,please take care of your messages.

When you receive tax payment notice,please arrange it on time to avoid shipment delay.

Once the duty is unpaid for long time,the shipment will be returned or discarded

and your payment would not be refunded.

WARRANTY&RETURN

Although goods functionalities had been 100% inspected at least 2 times in production,Juson Audio still insists in 100% inspecting to make sure product works well before shipping.Besides,we have our warranty policies:

1. Free repairing service for 12months from the date it was received(Excluding those man-made damaged and/or mis-used).For tubes parts, it will be 3months warranty.

1.1 Defective units MUST BE reported by photos,videos and/or others which can approve the problems and returned within warranty.

1.2 You need to submit tracking number and issue the PO number after arranged returns with original packages.

1.3  After the warranty expired,Juson Audio teams are super willing to offer technical supports online to help you to repair the product.

2. You have 7 days to contact us and 15 days to return it from the date it was received, lf this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOUR REFUND OR REPLACEMENT.After 15days,Juson Audio will provide 12months warranty.

Thank you for your supports again!

Juson Audio aims to make the sound better and will focus on audio always.

Make a deal,Enjoy lifetime services!

Juson Audio's Team will do the best to provide the after-sales service as good as possible!

Please feel free to contact us for any techniques support!

Note:WY-2 and WY3P tubes are used for voltage stabilization. It might be flikering when voltage is not stable.Please feel free to use, it doesn't affect sound output,tubes working life or others.It is NOT DEFECTIVE tubes or amplifier.

Product Specification:

• KT88 Tubes Power-Amp Output: Utilising high-quality KT88 power-amp tubes, our amplifier delivers a dynamic and full-bodied sound output, bringing life to your audio experience.

• Real HiFi Tube Amplifier: The Juson Audio tube amplifier provides genuine HiFi sound, offering you an immersive auditory experience right within your home.

• Upgradeable Preamp Tubes: Customize your sound to perfection with upgradeable preamp tubes, 6H2N/6N1/6N2/ECC85 preamp tubes can be replaced by ECC83/12AX7.

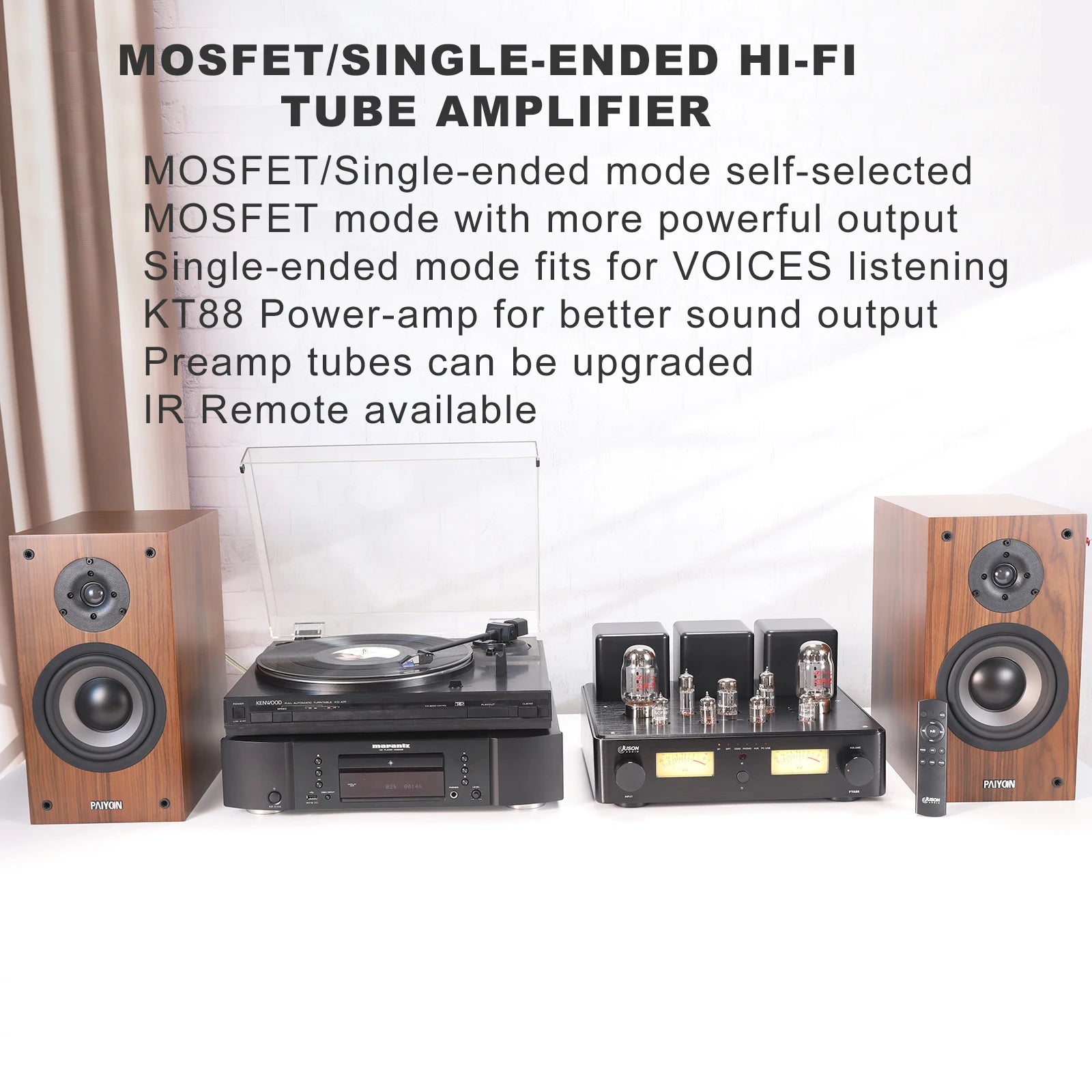

• Two Modes, One Amplifier: Juson Audio’s tube amplifier has MOSFET and Single-Ended modes, giving you more control and flexibility over your audio setup.In Mosfet Mode, This feature ensures a smooth, highly stable, and distortion-free sound output, elevating your listening experience.In Single-ended mode,it embraces the warm, vintage sound characteristic of single-ended tube amplifiers, bringing a unique, nostalgic touch to your home audio system.

• Versatile Inputs & Outputs: This HiFi amplifier supports multiple inputs including Phono,COAX, OPT,CD,DVD and BT 5.0. It has a subwoofer output, enhancing its versatility and adaptability for various audio setups. A Remote provides controlling from a distance.

• Warm Tips:Remote does not include battery,please prepare it by yourself.If the speaker has low volume in BT input,please check your device BT SETTING,the blue tooth volume audio output should follow by phone speaker's.

Package included:

Sturdy Inner and outer boxes package:

High Definition pictures:
