SPECIFICATIONS

Battery Included: Yes

Bluetooth: No

Body Material: Metal

Brand Name: TZT

Certification: CE

Dimensions (WxHxD): 120 x 115 x 48mm/4.7 x 4.5 x 1.9

Function: None

High-concerned chemical: None

Model Number: 83953

Package: Yes

Power Supply: Rechargeable Battery Pack

Screen: Yes

Style: Portable

Type: AM / FM

WIFI: Yes

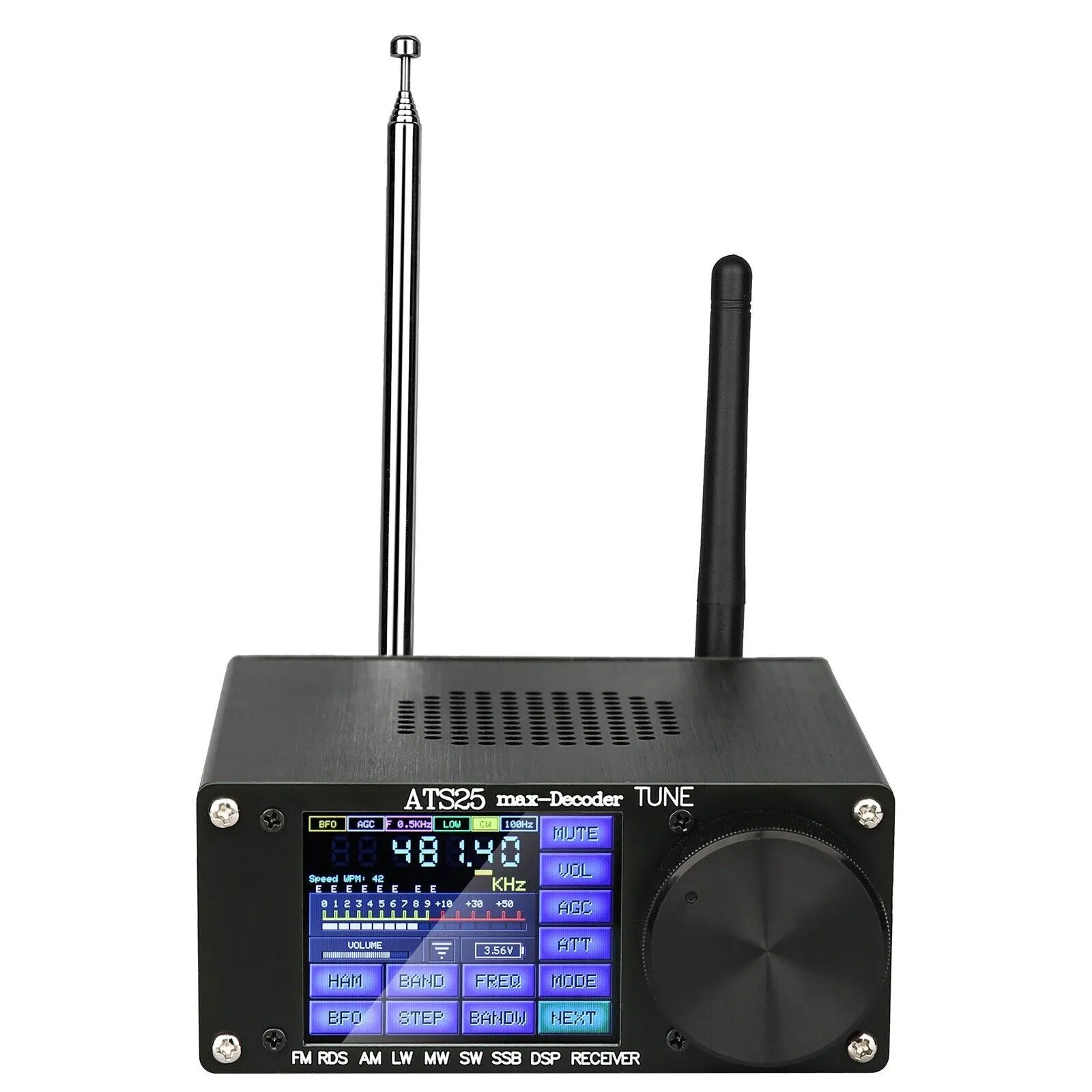

HamGeek 4.17 Official Registered Code ATS25Max-Decoder Si4732 Full Band Radio Receiver FM RDS AM LW MW SW SSB DSP ATS25 Max

HAMGEEK ATS25Max-Decoder

Attention:

- ATS25Max-Decoder is an officially authorized version which can support online firmware update.

- Suggestion: WiFi is very power -consuming. Use only when activating keys. It usually only shows the date, time, please close it when you go out to save battery electricity.

- How to view key: Open the panel, click next to click Info, and twist the rotation, look at the picture above. You can see the 8-bit key, the standard is 12-bit. If necessary, please contact us for asking. The key will be stored in the machine for a long time without worrying about the firmware update.

Features:

- Added CW, RTty F4 F8 decoding function and four audio spectrum

- ChangeLog FW 4.16 Air

- Firmware H-RADIO 4.16 AIR

- Optimization of the memory usage of the microcontroller has been carried out to speed up the interface

- Removed the display of the RSSI/SNR signal in the form of a waterfall for the ILI9341 screen

- Fixed a frequency display error for the ILI9341 screen in FM and CB mode

- Fixed audio spectrum output error for the ILI99341 screen

- Improved accuracy of frequency display on the audio spectrum

- Added different modes of operation of the beeper for different modifications

- Fixed a frequency display error in the list of cities

- Fixed the error of displaying the decoder screen in CB mode

- Fixed the error of displaying the clock in the medium and long wave ranges in the synchro mode

- Added FT8 and FT4 decoder

- Changed the display of the DIGI decoding

- Added scrolling of the DIGI decoder buffer with saving decoded data to the decoder.log file in SPIFFS

- Fixed screen scrolling errors in SCAN

- Fixed the error of not muting the sound when starting a scan in SCAN for SYNC modulation

- Fixed the error of getting time via RDS

- Added support for Bluetooth, LNA and a function button for the ATS120 receiver

- Added Bluetooth on indicator, encoder lock and antenna options for all receiver modifications

- Added a quick access panel to Bluetooth settings, encoder lock and antenna options by clicking on the corresponding indicator

- Added SNR definition for SSB modulation based on spectrum analyzer data in the presence of a decoder

- Added the ability to mirror the screen

- SI4732 full-band DSP radio receiver FM LW (MW and SW) and SSB with 2.4 "touch screen

Product Parameters:

- Shell material: aluminum alloy

- 3.7V /4000mA built-in lithium battery

- Type-C charging interface and maximum 1.2A charging current

- Type-c interface upgrade solution

- Support 3.5mm stereo audio output

- Forian interface BNC

- Support 3.5mm audio jack FM antenna

- 2.4 -inch touch screen

- Outage audio power 1.5W

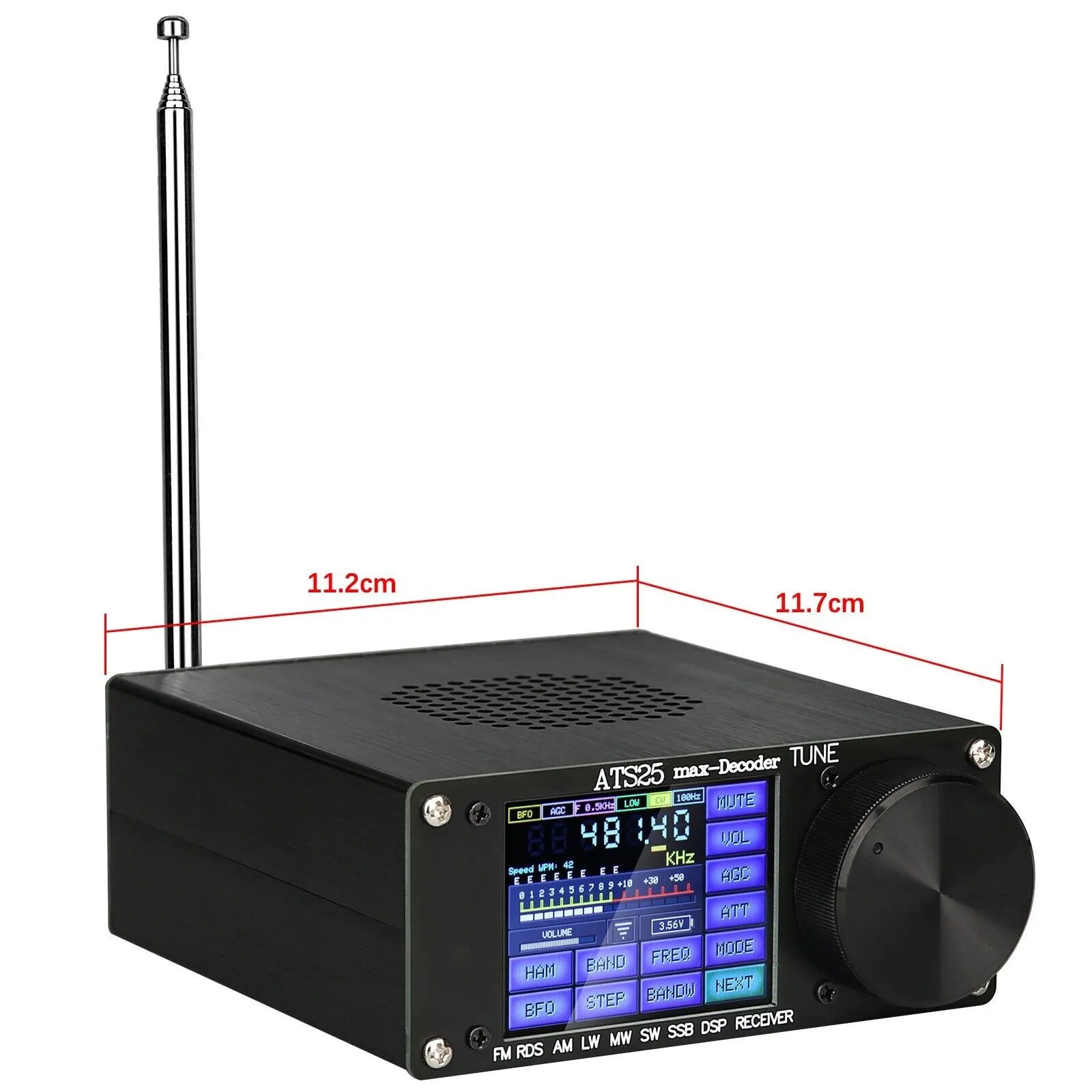

- Product size: 120 x 115 x 48mm/4.7 x 4.5 x 1.9" (excluding protruding part of the size)

Frequency Range:

- FM: 64-108MHz/RDS function

- LW: 153-500KHz

- MW: 520-1710kHz

- SW: 1730-30000KHz

- SSB: 17030kHz

Functions:

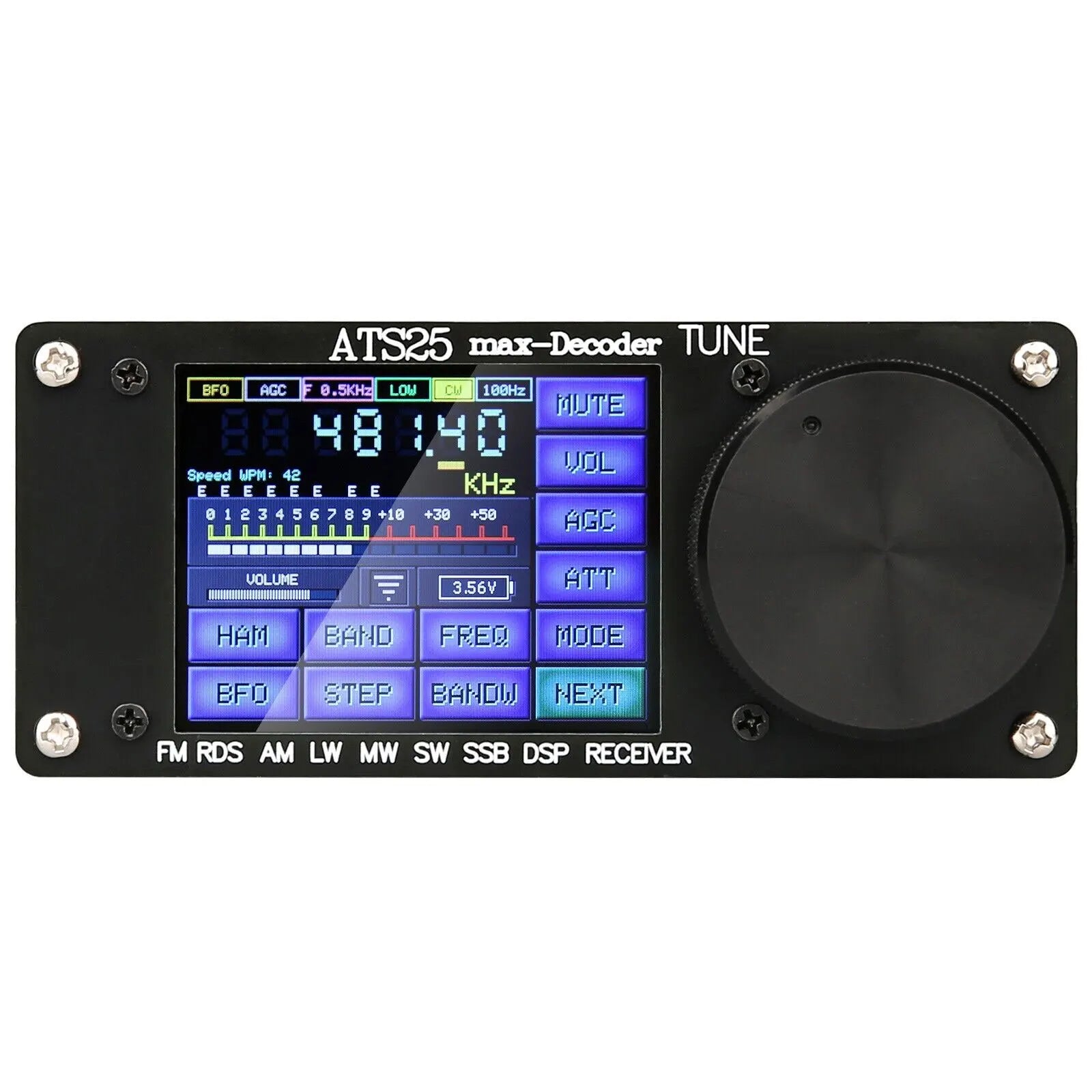

1. With a 2.4 -inch touch screen

2. Support broadcast search

3. Support digital keyboard direct input frequency

4. Support HAM band fast channel

5. Support AM bandwidth: 1-6KHz

6. Support SSB bandwidth: 0.5-4.0KHz

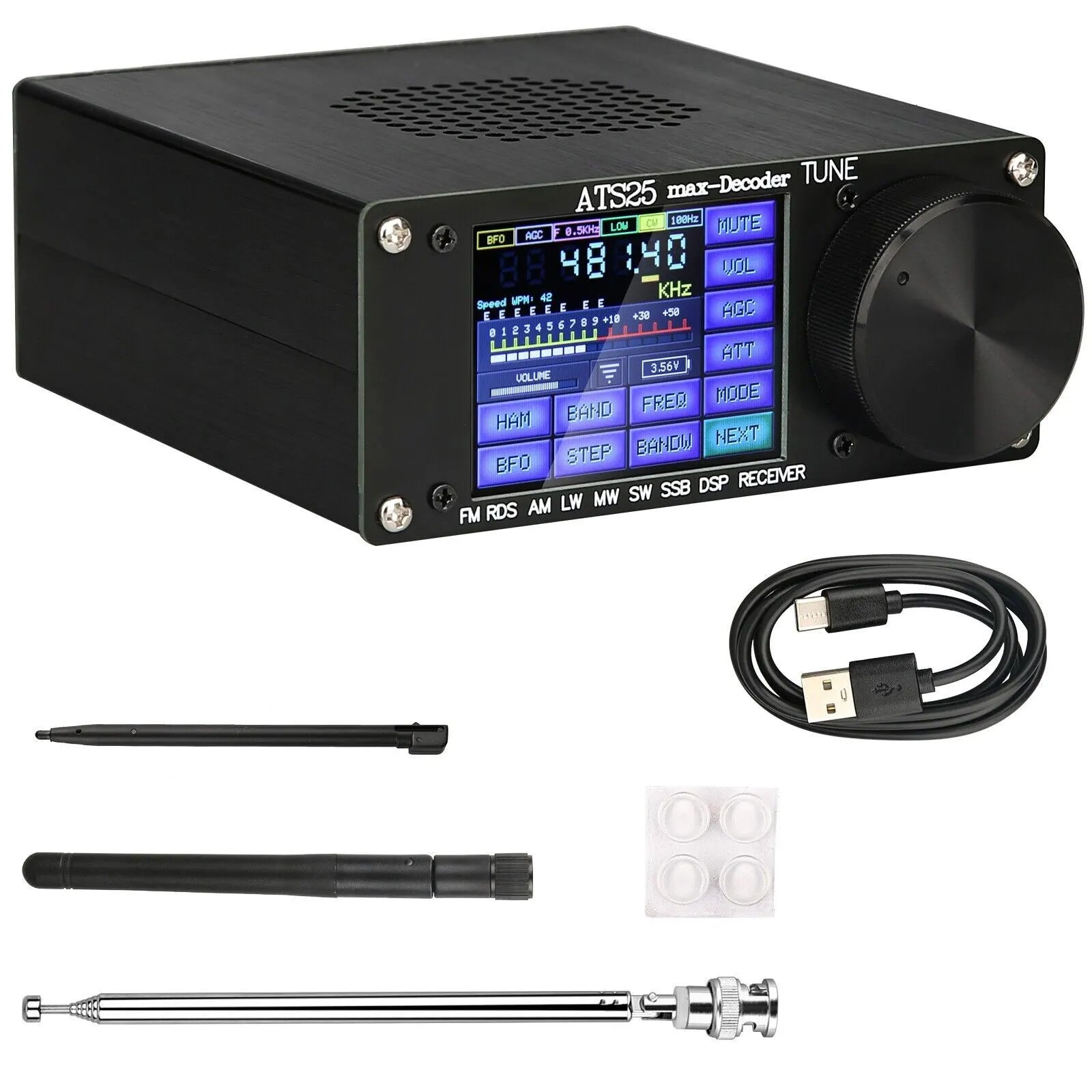

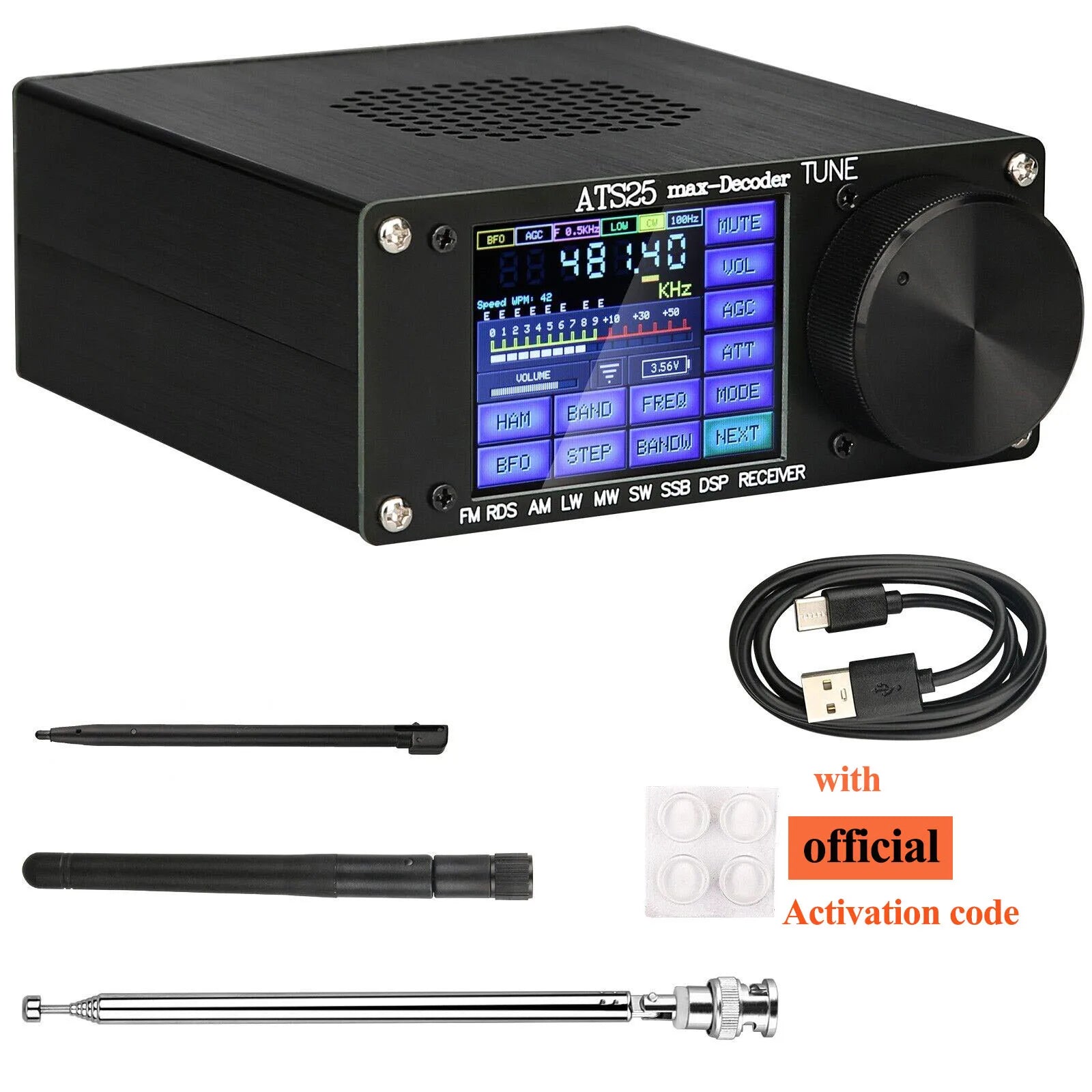

Package Included:

-- 1 x ATS25Max-Decoder of Radio Receiver
